Exercise 2A: Visium HD QC

Quality control at cell-level

In this second exercise, we will focus on the critical step of quality control (QC) for sequencing-based spatial transcriptomics data. We will focus on the segmented Visium HD dataset used in Exercise 1C, so each observation is an individual cell with the selected region of interest. QC helps flag low-quality cells or technical artifacts before downstream analysis.

Note

A similar QC can be done per bin or aggregated bin if a binned analysis of Visium HD is performed.

Learning objectives

By the end of this exercise, you will be able to:

Calculate per-cell QC metrics.
Identify local outliers based on various QC metrics.
Detect spatial artifacts using SpotSweeper.
Visualize QC metrics and detected artifacts.

Libraries

library(SpatialExperiment)
library(SpatialFeatureExperiment)
library(Voyager)
library(HDF5Array)
library(alabaster.sfe)

library(SpotSweeper)
library(scuttle)
library(scrapper)
library(scater)
library(escheR)

library(ggplot2)
library(ggside)
library(ggspavis)
library(patchwork)

Calculate QC metrics

We will start by calculating QC metrics that are also commonly used in scRNA-seq data analysis: total UMI counts, number of detected genes, and percentage of UMIs originating from genes of the mitochondrial genome. Here these metrics are calculated per segmented cell and used to identify low-quality cells.

We will start by loading our SpatialFeatureExperiment object, which was saved in the previous exercise, and prepare it for quality control analysis.

# Reload the SpatialFeatureExperiment object if not in the R session already
sfe <- readObject("results/day1/01.1c_sfe_visium/")
## Otherwise, quickly go through Exercise day1-1c to recreate the object

# Identify mitochondrial genes (genes with symbol starting with "MT-")
is.mito <- rownames(sfe)[grepl("^MT-", rownames(sfe))]

Now, we will calculate per-cell QC metrics using the scuttle package. The function addPerCellQCMetrics adds QC metrics, including mitochondrial gene percentage, to the colData of the SpatialFeatureExperiment object.

Note

This function will soon be deprecated and replaced by a faster function in the scrapper package (function quickRnaQc.se()).

Run the following code to compute these metrics:

sfe <- addPerCellQCMetrics(sfe, subsets = list(Mito = is.mito))

Exercise 1

Check which metadata has been added to colData. Do you recognize the different metrics?

Answer

# Display the colData to see the newly added QC metrics.
colData(sfe)

DataFrame with 34874 rows and 8 columns
                     sample_id      area       sum  detected subsets_Mito_sum
                   <character> <numeric> <numeric> <integer>        <numeric>
cellid_000080404-1    sample01   747.265       800       679               44
cellid_000080411-1    sample01   800.215       345       317               21
cellid_000080412-1    sample01   853.515       370       338                8
cellid_000080429-1    sample01   641.400       733       604               66
cellid_000080439-1    sample01   692.900       796       663               43
...                        ...       ...       ...       ...              ...
cellid_000189312-1    sample01   1067.80       913       687               74
cellid_000189323-1    sample01   1547.49      1102       782              109
cellid_000189331-1    sample01    319.80       164       149                3
cellid_000189341-1    sample01   2398.50      1066       773               59
cellid_000189343-1    sample01   3255.97      2820      1780              206
                   subsets_Mito_detected subsets_Mito_percent     total
                               <integer>            <numeric> <numeric>
cellid_000080404-1                    10              5.50000       800
cellid_000080411-1                     9              6.08696       345
cellid_000080412-1                     5              2.16216       370
cellid_000080429-1                    10              9.00409       733
cellid_000080439-1                    10              5.40201       796
...                                  ...                  ...       ...
cellid_000189312-1                    11              8.10515       913
cellid_000189323-1                    11              9.89111      1102
cellid_000189331-1                     3              1.82927       164
cellid_000189341-1                    11              5.53471      1066
cellid_000189343-1                    12              7.30496      2820

The sum column contains the total number of unique molecular identifiers (UMIs) per cell
The detected column contains the number of unique genes detected per cell
The subsets_Mito_percent column contains the percentage of transcripts mapping to mitochondrial genes per cell

Global outlier detection

In order to detect low-quality cells and filter them out, QC methods similar to those from scRNA-seq analysis can be applied. A simple approach is to apply a fixed upper or lower threshold to a metric across all cells and remove the cells that do not pass the filtering criteria.

To set up these thresholds and adapt them to this technology, we can look for information from 10x Genomics and the community, for example https://github.com/10XGenomics/HumanColonCancer_VisiumHD/issues/28. Based on this discussion the authors of the OSTA book wrote (see “Remove bins overlaying empty tissue” section in https://lmweber.org/OSTA/pages/seq-workflow-visium-hd-bin.html#dependencies):

Based on a discussion with the original author at 10x Genomics, in this dataset, 8 µm bins with a library size below 100 are removed. Since we expect a 4-fold increase in library size across all bins at 16 µm, we can set the filtering threshold to 400.

This is not exactly transposable to the segmented cell output, but conveys the message that the UMI counts are low, much lower than what is observed with scRNA-seq data! We can also have a look and plot distributions of the values to decide which is the best cutoff:

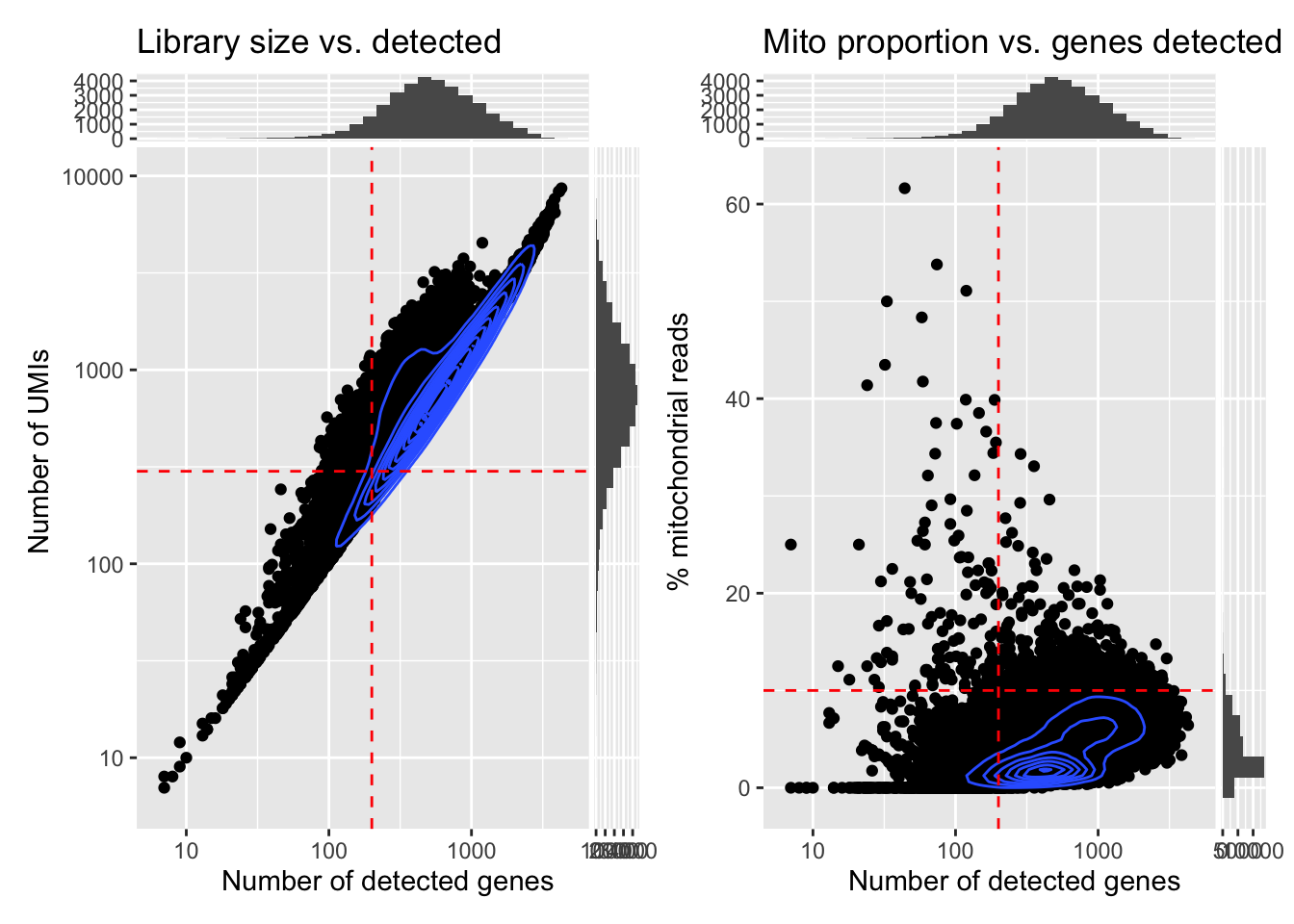

# Plot library size vs. detected genes
p1 <- ggcells(sfe, aes(x=detected, y=sum)) +
  geom_point() +
  geom_density_2d() +
  scale_x_log10() +
  scale_y_log10() +
  geom_xsidehistogram() +
  geom_ysidehistogram() +
  geom_vline(xintercept = 200, col="red", lty=2) +
  geom_hline(yintercept = 300, col="red", lty=2) +
  labs(y="Number of UMIs", x="Number of detected genes") +
  ggtitle("Library size vs. detected")

# Plot mito proportion vs. detected genes
p2 <- ggcells(sfe, aes(x=detected, y=subsets_Mito_percent)) +
  geom_point() +
  geom_density_2d() +
  scale_x_log10() +
  geom_xsidehistogram() +
  geom_ysidehistogram() +
  geom_vline(xintercept = 200, col="red", lty=2) +
  geom_hline(yintercept = 10, col="red", lty=2) +
  labs(y="% mitochondrial reads", x="Number of detected genes") +
  ggtitle("Mito proportion vs. genes detected")

p1 + p2

And further check how many cells would be removed with the given thresholds:

# Flag cells based on fixed thresholds
sfe$qc_lib_size <- sfe$sum < 300
sfe$qc_detected <- sfe$detected < 200
sfe$qc_mito_prop <- sfe$subsets_Mito_percent > 10

# Tabulate number of cells flagged by each
qc <- grep("^qc", names(colData(sfe)))
sapply(colData(sfe)[qc], table)

      qc_lib_size qc_detected qc_mito_prop
FALSE       30425       31429        33638
TRUE         4449        3445         1236

Exercise 2

What do you think about this potential QC filtering?

Have a look at the metrics on the tissue section using the plotting functions used in the previous practical, or with the plotObsQC() function from the ggspavis package. Where are the cells that would be excluded with such global cutoffs?

Try using more stringent cutoffs to see which cells would be excluded. What do you notice? What does it tell us retrospectively about the use of global cutoffs in the analysis of scRNA-seq data?

Answer

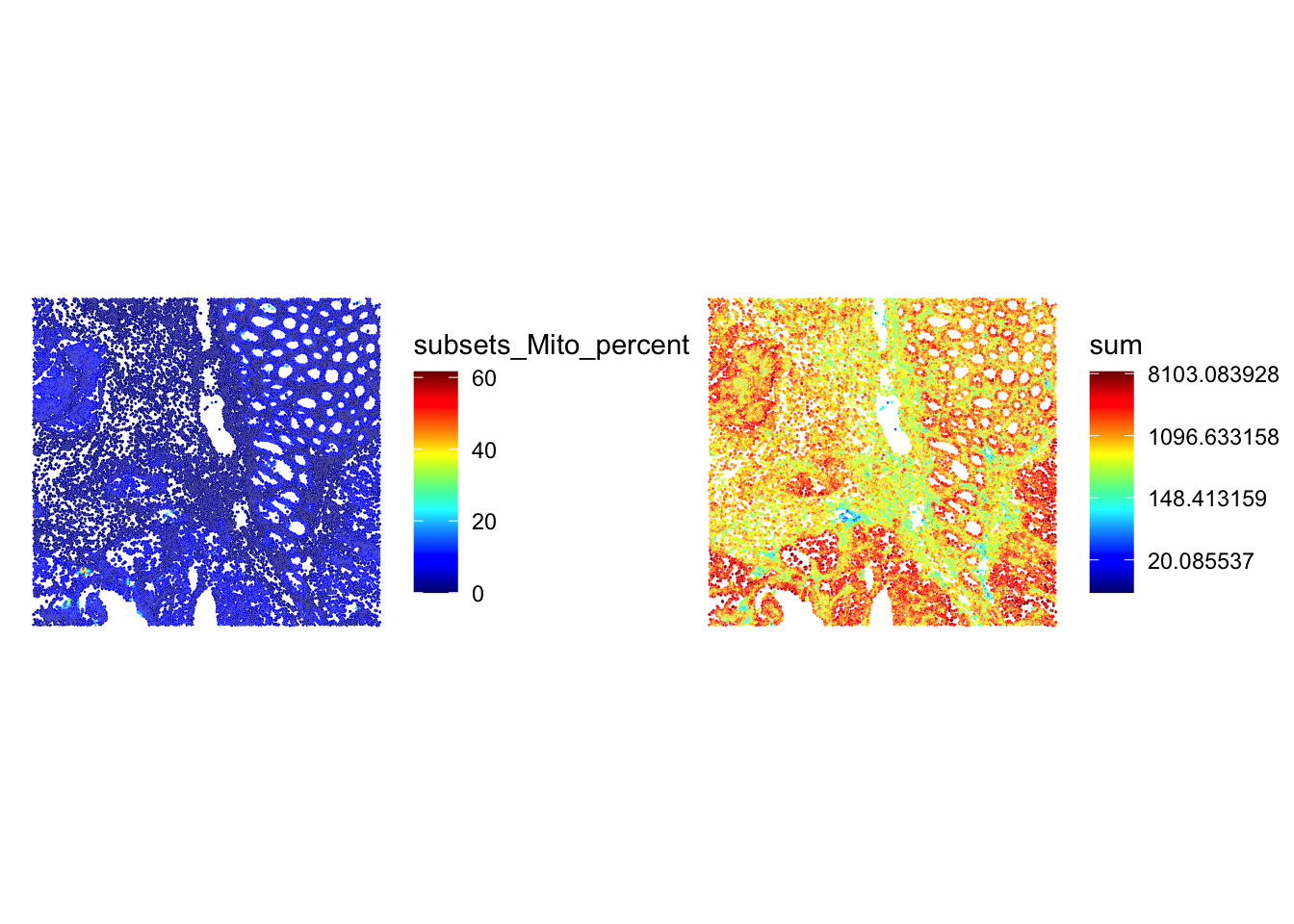

## Plot the metrics
p1 <- plotSpatialFeature(sfe, colGeometryName = "cellSeg", features = "subsets_Mito_percent") +
  theme(plot.title=element_text(hjust=0.5)) +
  scale_fill_gradientn(colors=pals::jet())
p2 <- plotSpatialFeature(sfe, colGeometryName = "cellSeg", features = "sum") +
  theme(plot.title=element_text(hjust=0.5)) +
  scale_fill_gradientn(trans = "log", colors=pals::jet())
p1 + p2

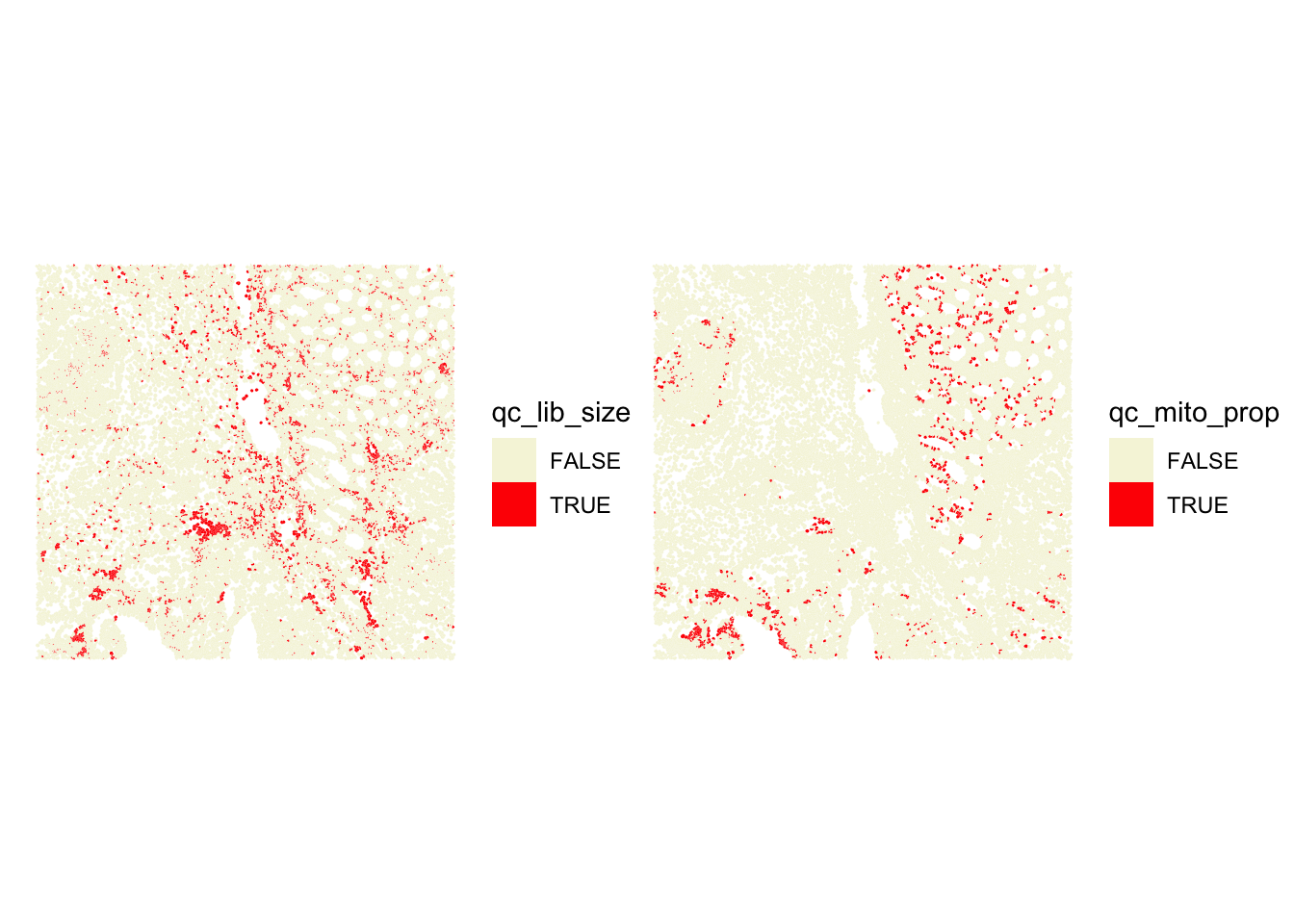

## Which cells would be excluded
p1 <- plotSpatialFeature(sfe, colGeometryName = "cellSeg", features = "qc_lib_size") +
  theme(plot.title=element_text(hjust=0.5)) +
  scale_fill_manual(values = c("beige", "red"))
p2 <- plotSpatialFeature(sfe, colGeometryName = "cellSeg", features = "qc_mito_prop") +
  theme(plot.title=element_text(hjust=0.5)) +
  scale_fill_manual(values = c("beige", "red"))
p1 + p2

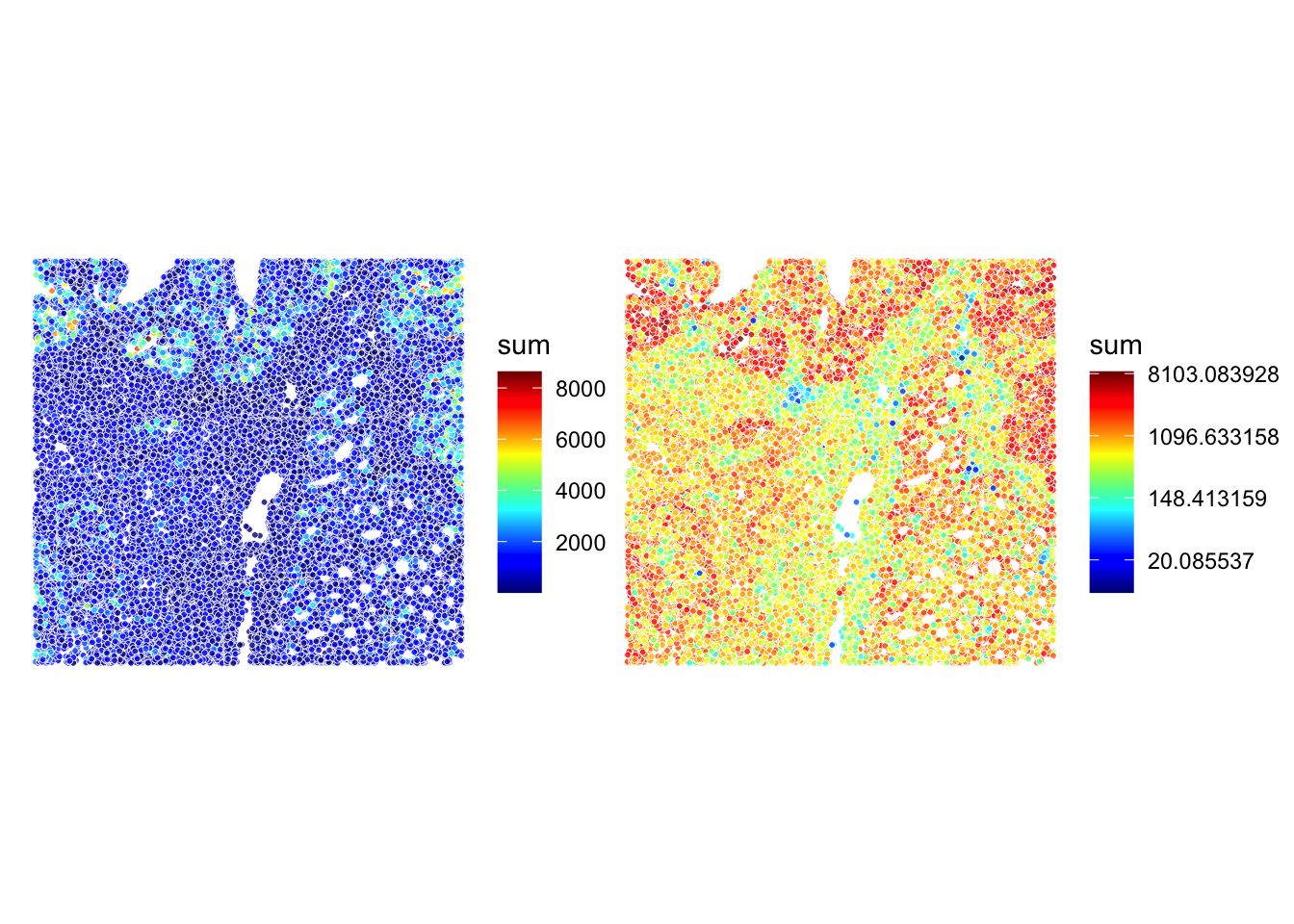

## A similar plot using the ggspavis::plotVisium() function (y-coordinates are flipped!)
p1 <- plotVisium(sfe, annotate = "sum", image = FALSE) +
  theme(plot.title=element_text(hjust=0.5)) +
  scale_fill_gradientn(colors=pals::jet())
p2 <- plotVisium(sfe, annotate = "sum", image = FALSE) +
  theme(plot.title=element_text(hjust=0.5)) +
  scale_fill_gradientn(trans = "log", colors=pals::jet())
p1 + p2

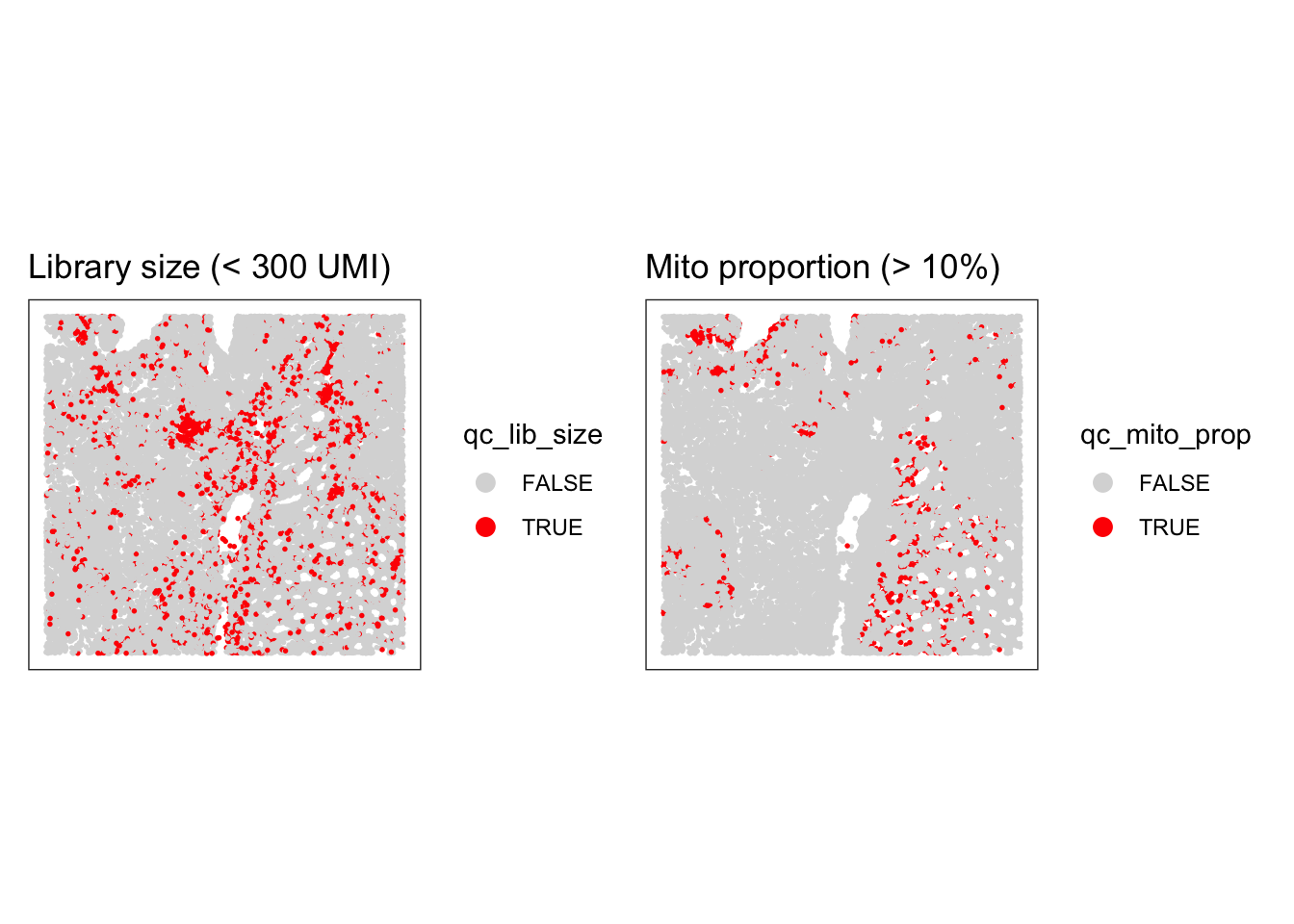

## or with the ggspavis::plotObsQC() function
p1 <- plotObsQC(sfe,
                plot_type="spot", annotate="qc_lib_size") +
  ggtitle("Library size (< 300 UMI)")
p2 <- plotObsQC(sfe,
                plot_type="spot", annotate="qc_mito_prop") +
  ggtitle("Mito proportion (> 10%)")
p1 + p2

Stringent cutoffs lead to excluding cells in specific cellular structures, so quite likely excluding some specific cell types, which is not ideal. We have the opportunity to see that directly on the slide here, which is not the case when we analyze scRNA-seq data… There, a choice of a stringent cutoff can filter out entirely some cell types without us noticing!

Local Outlier Detection

To avoid discarding whole layers of tissue, another approach to identify low-quality cells is to use local outlier detection methods that take into account the spatial context of each cell.

The SpotSweeper package provides functions to identify local outliers based on common QC metrics (such as the ones we have seen in the previous section: library size, number of detected genes, and mitochondrial percentage).

We will use localOutliers from SpotSweeper, which helps identify cells that deviate significantly from their local neighborhood.

# Identify local outliers based on library size ("sum" of counts).
# cells with unusually low library size compared to their neighbors will be flagged.
sfe <- localOutliers(sfe,
  metric = "sum",
  direction = "lower",
  log = TRUE
)

# Identify local outliers based on the number of unique genes detected ("detected").
# cells with an unusually low number of detected genes will be flagged.
sfe <- localOutliers(sfe,
  metric = "detected",
  direction = "lower",
  log = TRUE
)

# Identify local outliers based on the mitochondrial gene percentage.
# cells with an unusually high mitochondrial percentage will be flagged.
sfe <- localOutliers(sfe,
  metric = "subsets_Mito_percent",
  direction = "higher",
  log = FALSE
)

# Combine all individual outlier flags into a single "local_outliers" column.
# A cell is considered a local outlier if it is flagged by any of the above metrics.
sfe$local_outliers <- as.logical(sfe$sum_outliers) |
  as.logical(sfe$detected_outliers) |
  as.logical(sfe$subsets_Mito_percent_outliers)

Exercise 3

How many cells were identified as local outliers based on the combined criteria?

As we have seen before, visualizing the QC metrics is crucial for understanding the quality of your spatial transcriptomics data and for deciding on appropriate filtering strategies, so look at their spatial localization using for example the plotObsQC function. What do you think?

Answer

# Count the number of cells flagged as local outliers.
table(sfe$local_outliers)


FALSE  TRUE
34533   341

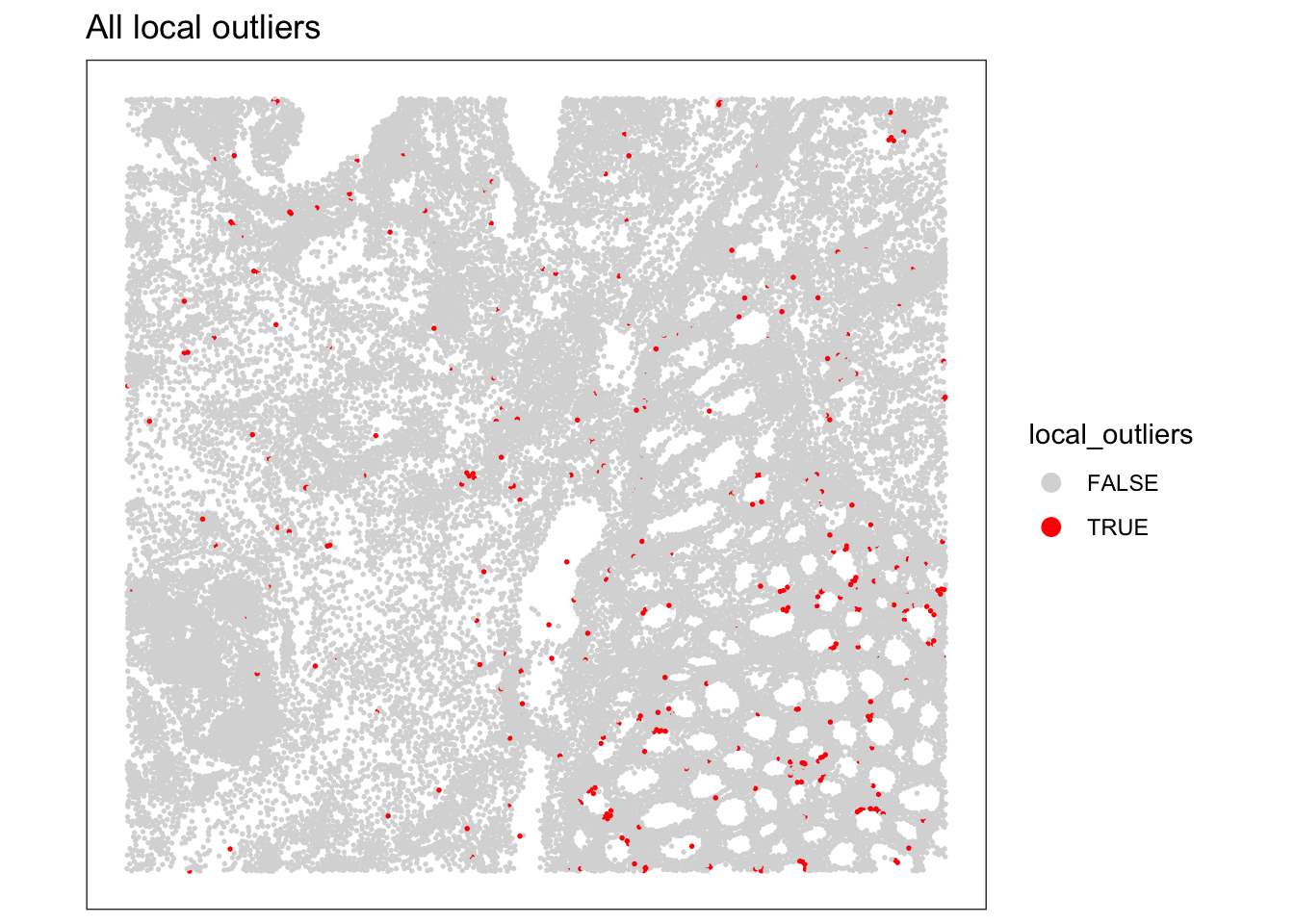

plotObsQC(sfe,
          plot_type="spot", annotate="local_outliers") +
  ggtitle("All local outliers")

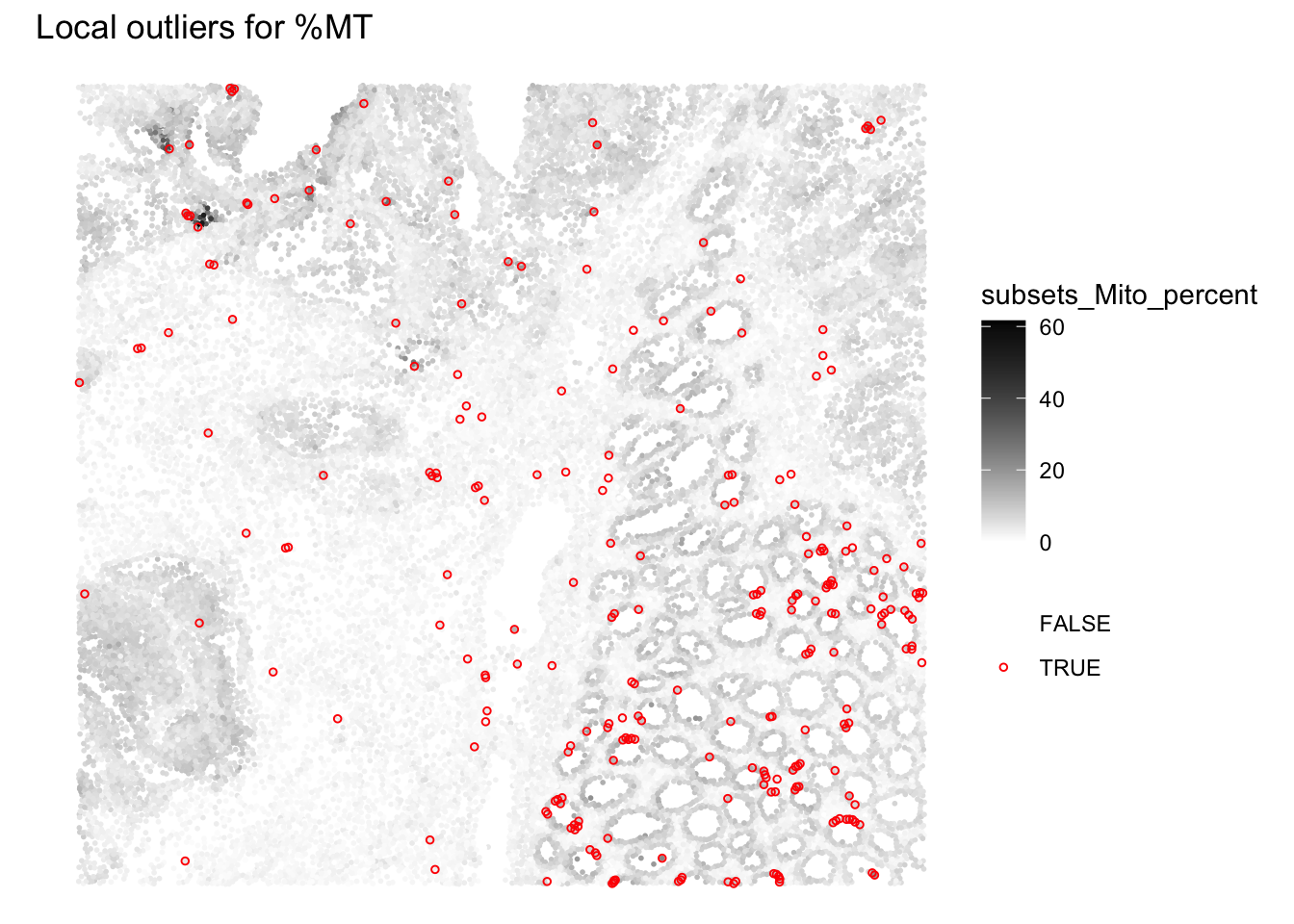

We can visualize the spatial distribution of the local outliers together with the QC metrics, for example plot the spatial distribution of local outliers for mitochondrial percentage.

plotQCmetrics(sfe,
  metric = "subsets_Mito_percent", outliers = "subsets_Mito_percent_outliers",
  point_size = 1, stroke = 0.5
) +
  ggtitle("Local outliers for %MT")

Overall we observe that very few outliers are detected. In regions where cells were spotted wiht global cutoffs, we notivce here that the cells that do not differ from their neighbourhood are not flagged anymore.

Exercise 4

Plot the spatial distribution of local outliers for library size and number of detected genes. What do you observe?

Answer

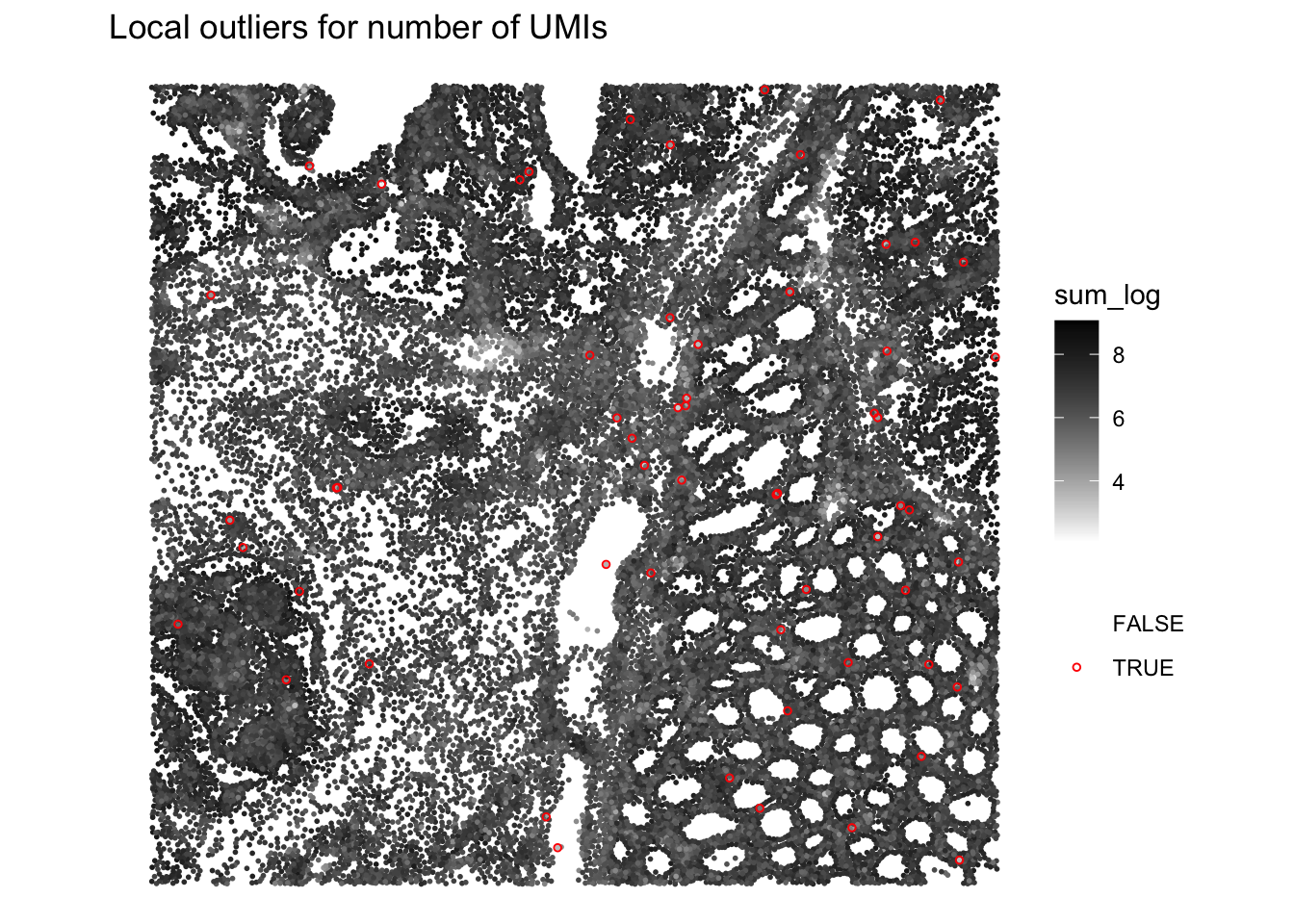

# Plot the spatial distribution of local outliers for library size.
plotQCmetrics(sfe,
  metric = "sum_log", outliers = "sum_outliers",
  point_size = 1, stroke = 0.5
) +
  ggtitle("Local outliers for number of UMIs")

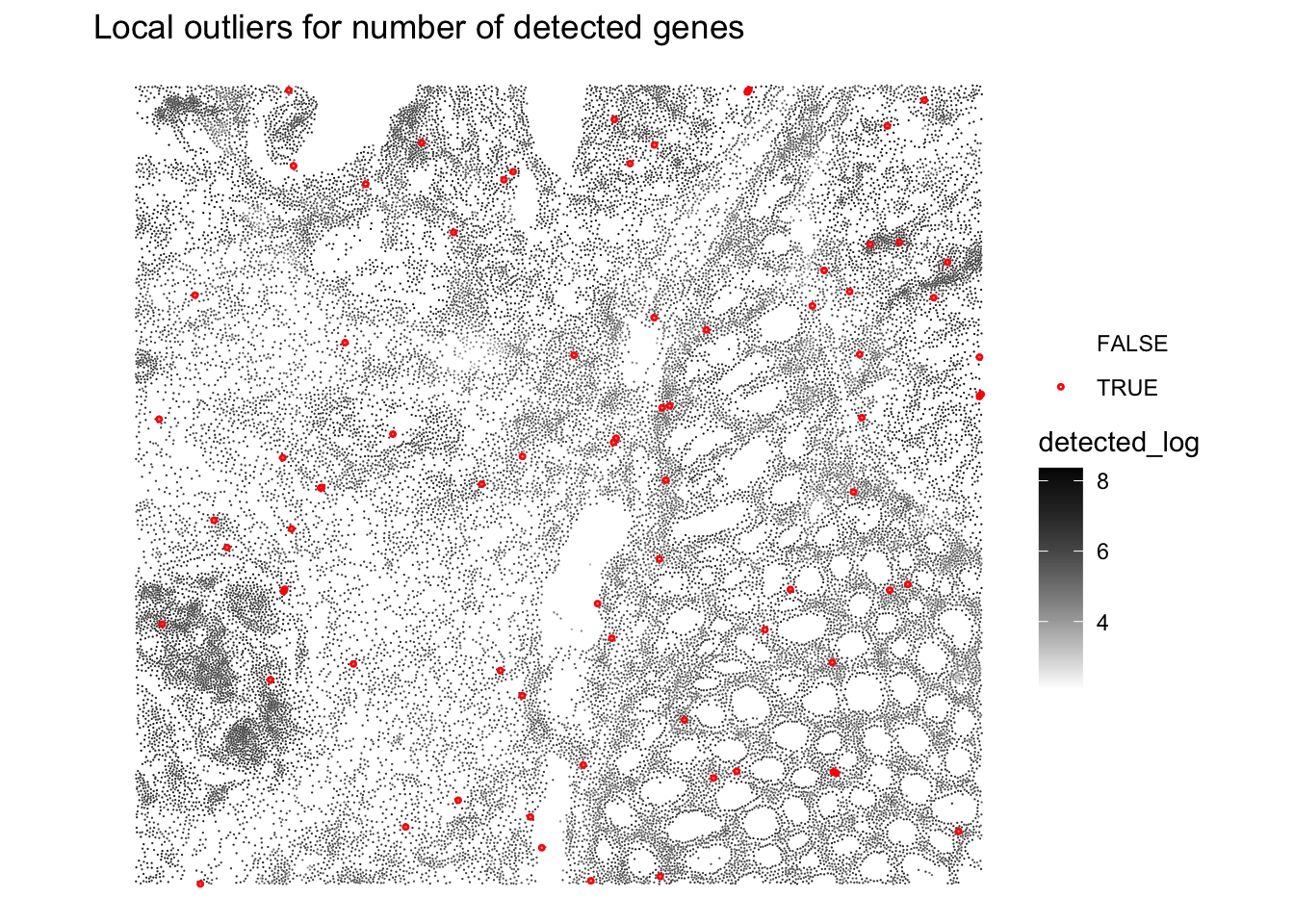

# Plot the spatial distribution of local outliers for number of detected genes.
plotQCmetrics(sfe,
  metric = "detected_log", outliers = "detected_outliers", point_size = 0.4,
  stroke = 0.75
) +
  ggtitle("Local outliers for number of detected genes")

Very few cells seem to be flagged as outliers

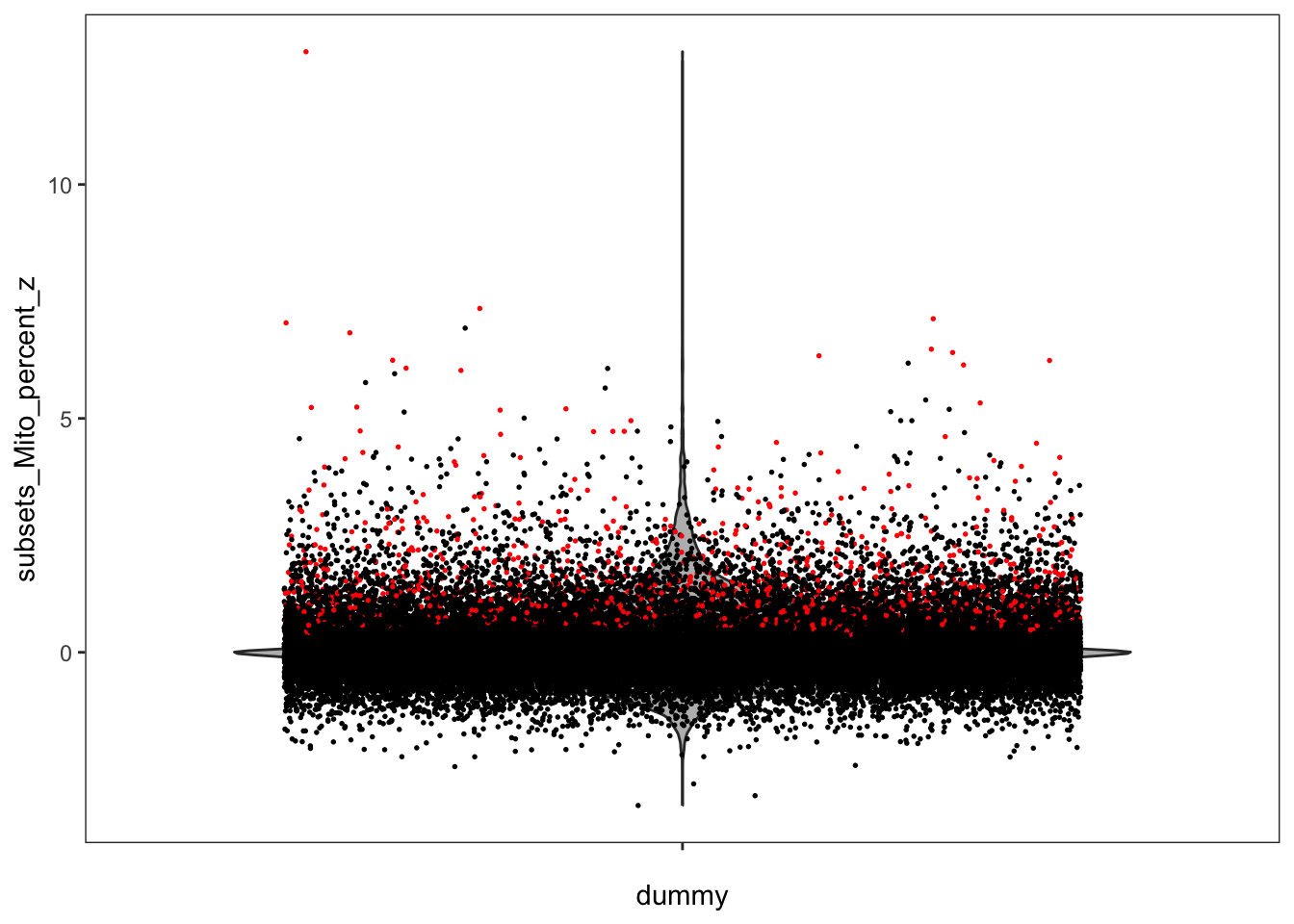

We can visualize the z-scores from the local outlier detection test and compare them to the global threshold used earlier. How do you interpret this?

plotObsQC(sfe, plot_type = "violin", x_metric = "subsets_Mito_percent_z", annotate = "qc_mito_prop")

Answer

We notice that some cells that were labeled as outliers based on a global cutoff are not outliers anymore relative to their local neighborhood, and conversely.

Compare and combine global and local outliers and apply filtering

For the next steps we choose to: - adjust the global cutoffs to be less stringent - combine the (new) global and local outliers to perform the QC filtering

# adjust global filtering cutoff
sfe$qc_lib_size <- sfe$sum < 120
sfe$qc_detected <- sfe$detected < 100
sfe$qc_mito_prop <- sfe$subsets_Mito_percent > 30

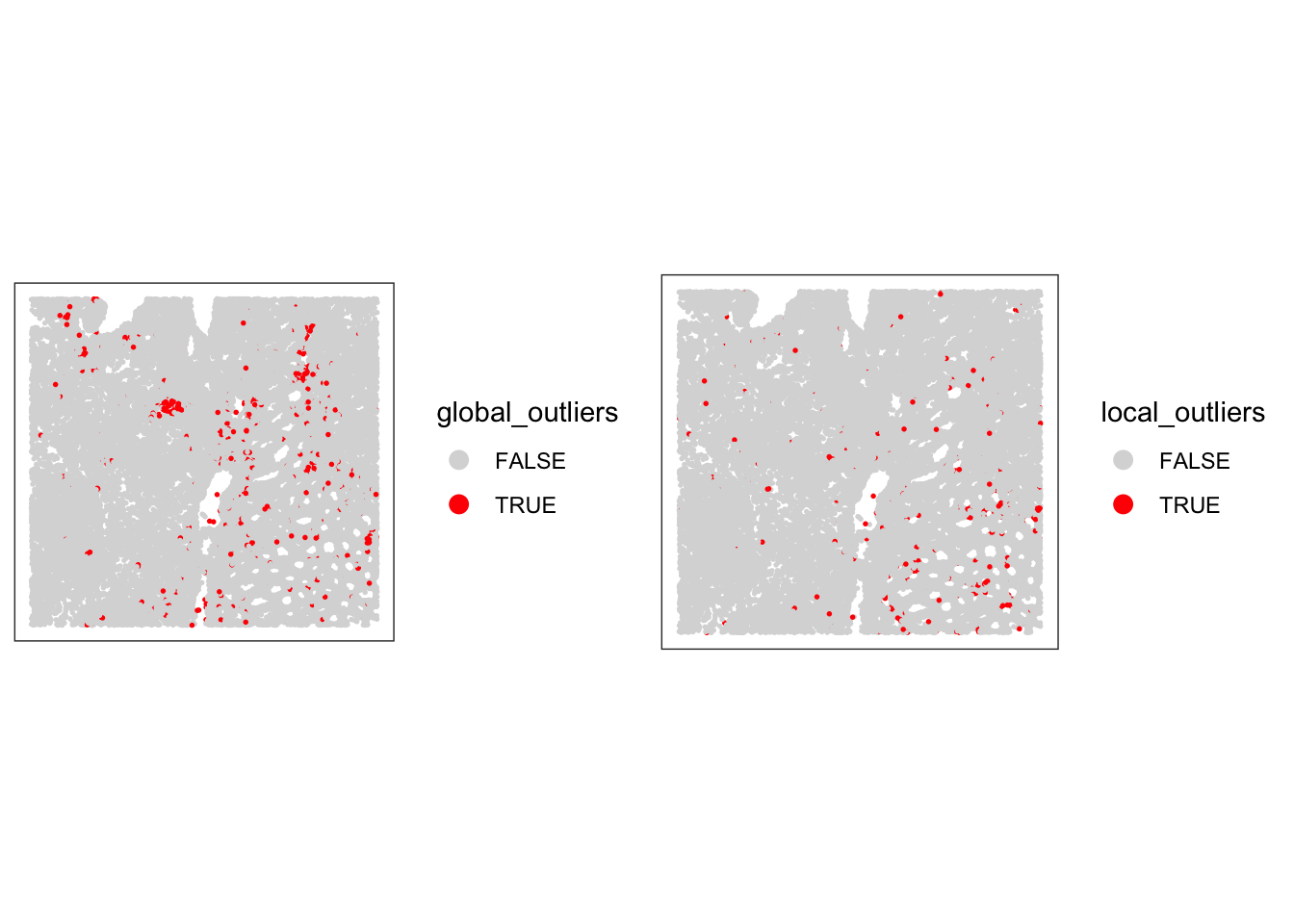

# compare global and local outliers being flagged
sfe$global_outliers <- sfe$qc_lib_size | sfe$qc_detected | sfe$qc_mito_prop
p1 <- plotObsQC(sfe, plot_type="spot", annotate="global_outliers")
p2 <- plotObsQC(sfe, plot_type="spot", annotate="local_outliers")
gridExtra::grid.arrange(p1, p2, ncol=2)

# combine local and global outliers to create a final discard flag
sfe$discard <- sfe$global_outliers | sfe$local_outliers

Exercise 5

Visualize the cells that will be discarded based on the combined criteria. How many cells will be removed?

Answer

# check how many cells will be discarded
table(sfe$discard)


FALSE  TRUE
33763  1111

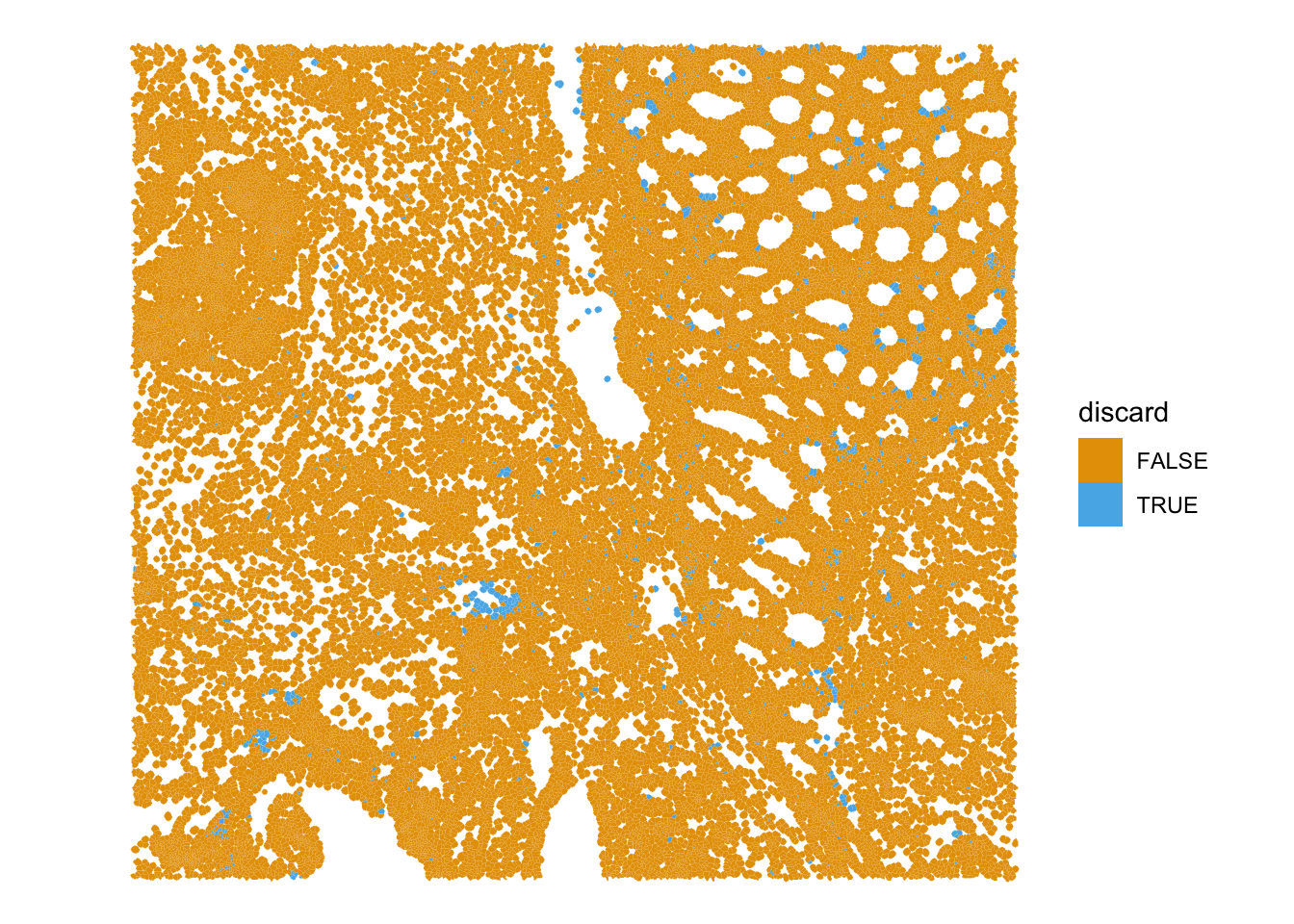

# have a final look at the cells that we will discard
plotSpatialFeature(sfe, colGeometryName = "cellSeg", features = "discard")

Bonus: region-level technical artifacts

Technical artifacts can arise during tissue preparation, for example tissue dissection can cause mechanical damage, leading to large areas with artificially low biological heterogeneity. These can be detected with the findArtifacts function of the spotSweeper package.

# find artifacts using SpotSweeper
sfe <- tryCatch(
  findArtifacts(sfe,
    mito_percent = "subsets_Mito_percent",
    mito_sum = "subsets_Mito_sum",
    n_order = 5,
    name = "artifact"
  ),
  error = function(e) {
    message(
      "findArtifacts() could not fit an artifact model for this subset: ",
      conditionMessage(e)
    )
    sfe$artifact <- FALSE
    sfe
  }
)

Exercise 6

What is the findArtifacts function performing and what are the (potentially problematic) assumptions?

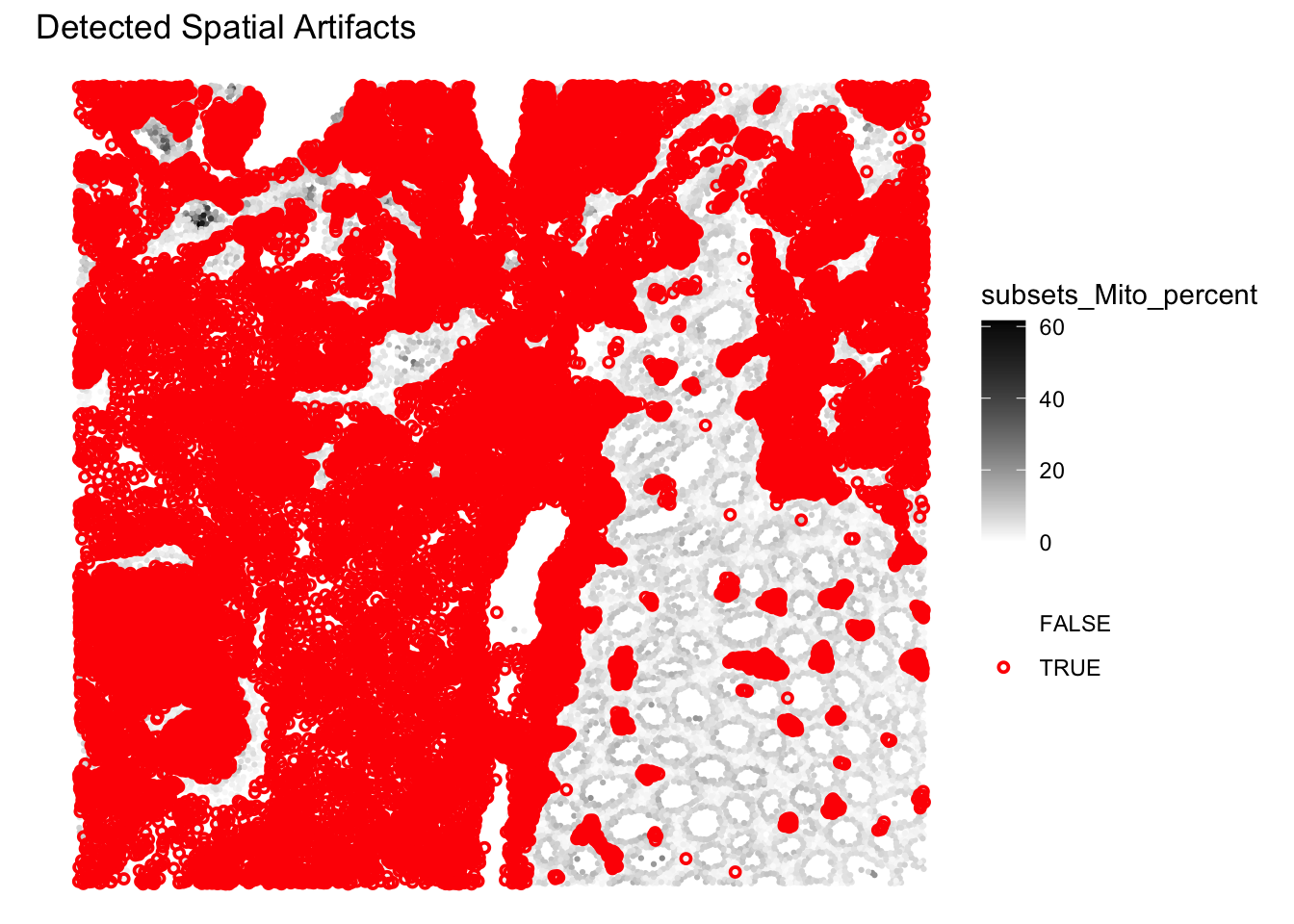

Plot the spatial distribution of the artifact column identified by SpotSweeper. What do you observe?

Answer

# Plot the spatial distribution of the detected artifacts.
plotQCmetrics(sfe,
    metric = "subsets_Mito_percent",
    outliers = "artifact",
    point_size = 1.1
) +
    ggtitle("Detected Spatial Artifacts")

The function is detecting region-level artifacts, such as “hangnail” artifacts, based on the multiscale variance of mitochondrial ratio. The exact methodology can be found in the paper and is actually quite complex and ad hoc (i.e., they devised this method after studying carefully the properties of their brain tissue section): https://pmc.ncbi.nlm.nih.gov/articles/PMC12258134/.

Here indeed the method separates two global-regions, one on the left with less variability in %MT, and one on the right with more variability. Does this mean that the region on the left should be excluded here? Probably not…

Filtering

We decide to filter out the low-quality cells from the SpatialFeatureExperiment object based on the combined criteria of global thresholds and local outliers. Additionally, we will remove any features (genes) that have zero counts across all remaining cells.

# remove the cells considered of low quality based on both global and local metrics
sfe <- sfe[, !sfe$discard]

# remove features no count at all
sfe <- sfe[rowSums(counts(sfe)) > 0, ]
sfe

class: SpatialFeatureExperiment
dim: 18878 33763
metadata(2): resources spatialList
assays(1): counts
rownames(18878): OR4F5 SAMD11 ... DEPRECATED_ENSG00000291096
  DEPRECATED_TRIM16L
rowData names(4): ID Symbol Type subsets_Mito
colnames(33763): cellid_000080404-1 cellid_000080411-1 ...
  cellid_000189331-1 cellid_000189341-1
colData names(30): sample_id area ... k90 artifact
reducedDimNames(1): PCA_artifacts
mainExpName: Gene Expression
altExpNames(0):
spatialCoords names(2) : pxl_col_in_fullres pxl_row_in_fullres
imgData names(4): sample_id image_id data scaleFactor

unit:
Geometries:
colGeometries: centroids (POINT), cellSeg (POLYGON)

Graphs:
sample01:

What is the size of the dataset after filtering?

Save the object

Save the filtered SpatialFeatureExperiment object for the next steps:

alabaster.sfe::saveObject(sfe, "results/day1/01.2_sfe_visium")

Clear your environment:

rm(list = ls())
gc()
.rs.restartR()

Important

Key Takeaways:

scuttle::addPerCellQCMetrics provides essential per-cell QC metrics.
SpotSweeper::localOutliers helps identify individual problematic cells relative to their local context.
SpotSweeper::findArtifacts is more controversial but could in certain case be useful to detect region-level artifacts
Visualizing QC results is critical for data interpretation and downstream analysis decisions.
